UF Membrane System for CED Coating
Kamal Envirotech supplies complete Electrocoat/CED Coating Ultrafilter systems.Ultrafiltration is a process for separating a portion of the low molecular weight component of the paint bath from the main paint stream.

In electro coat paint systems, the permeate produced by the ultra-filter contains water and paint solubilizers. The permeate is used in the paint line rinse section. This recycling method provides a closed-loop rinse system for recovering paint drag-out. The permeate can also be diverted to drain to control the conductivity of the paint. Impurities that might come due to pre-treatment like salt, solubilizers etc. can also be removed by ultrafiltration. Depending on the Molecular Weight Cut Off (MWCO) of the membrane used, macromolecules may be purified, separated, or concentrated in either fraction.

UF Membrane System consist of:
UF Membrane/Module
We offers cost-saving replacement Electrocoat Ultrafilter membrane elements for existing CED Coating Ultrafilter systems. Different Sizes available for replacement Electrocoat membranes are 4"(4040), 6"(5640) and 8"(7940)
MODEL FEED FLOW  INLET
PRESSURE
OUTLET
PRESSURE
PERMEATE OUT MAX CLEANING TEMP. pH RANGE
4040 76 LPM 3.4 bar 1.4 bar 3.0/2.3 LPM 49 C 1-12
5640 265 LPM 3.4 bar 1.4 bar 7.6-6.4 LPM 49 C 1-12
7640 380 LPM 3.4 bar 1.4 bar 15-9.5 LPM 49 C 1-12
7940 420 LPM 3.4 bar 1.4 bar 17-11 LPM 49 C 1-12

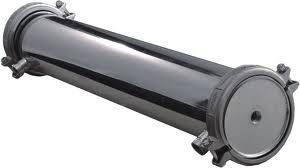

UF Housing for CED Coatingg
KEPL Supplies good quality SS Housing for UF Membrane System used in CED Coating Plant.
Specification

-Standard Size Available: 4040, 6040, 8040 (4",6",8")
- Material of Construction: SS304
- Material of Construction Fitting: SS304
- Design: Seamless
- Design Inlet/Outlet: Sideport
Customer Benefits
• Easy installation
• Easy Retrofit/Change out
• Higher permeate rates and lower operating cost
• Reduced equipment downtime
• Improved energy efficiency
• Recover valuable products
